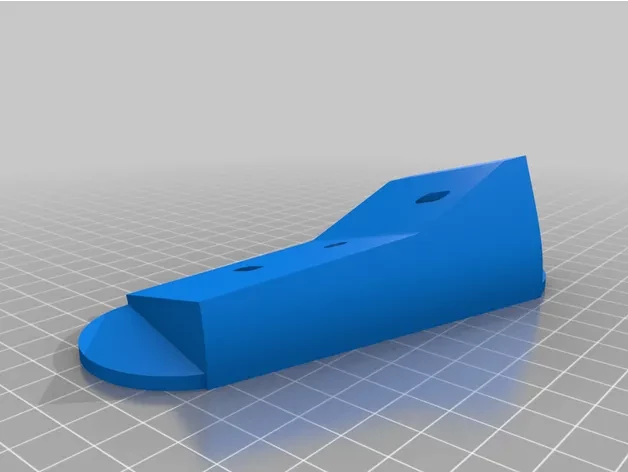

Reolink Doorbell Camera (PoE) Mount - Compound Angles (15° left, 5.5° down) by Al-Hala

Printing Printed in Black PETG (spray painted with black outdoor paint to further limit UV exposure and to seal any potential gaps) at the following settings: Gyroid infill of 50%, 8 bottom layers, 0.2 layer height, 5 perimeters, 8 top layers. Approximate print time of 7h40m, 79g filament used. Variants I've included two configurations: Model #1 Mounting slots suitable for #10 screw diameter (0.19") CAT6 Cable pass-through WITHOUT connector (0.25") Model #2 Round mounting holes suitable for #10 screw diameter (0.19") CAT6 Cable pass-through WITHOUT connector (0.25")
