The Everything Remote - A Fully Open-source Arduino Remote by jrisley

The Everything Remote is a fully Open-Source Arduino-based remote designed to be integrated into absolutely any project that requires remote control and/or feedback.

The remote features 4 analog joysticks for full control of your project, an MPU6050 for gyroscopic control, an NRF24L01 for radio communication to your project, a 0.96", 128 x 64 OLED display for control feedback and/or feedback from your project, and an Arduino Nano.

All parts are designed with minimal support material needed. The example build was printed on a Creality CR10.

I have provided an Arduino test sketch which will allow you to test the functionality of the remote but this can be edited at will to suit your project.

The following parts will be needed in order to assemble the Everything Remote:

• Arduino Nano
• MPU6050
• x4 analog joysticks
• NRF24L01, with antenna
• Main body part
• Lid part

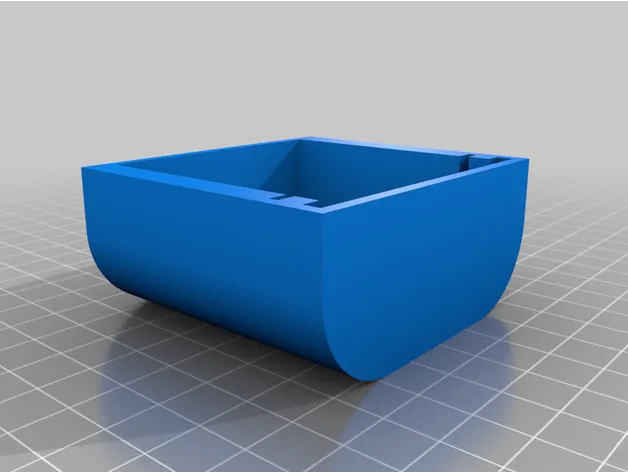

• battery box part
• x15 M3 brass heat inserts (mount lid, MPU6050 and joysticks)
• x4 M2 brass heat inserts (mount OLED)
• x4 M1.2 brass heat inserts (mount Arduino Nano)
