Customizable tap storage box by Antihero53861

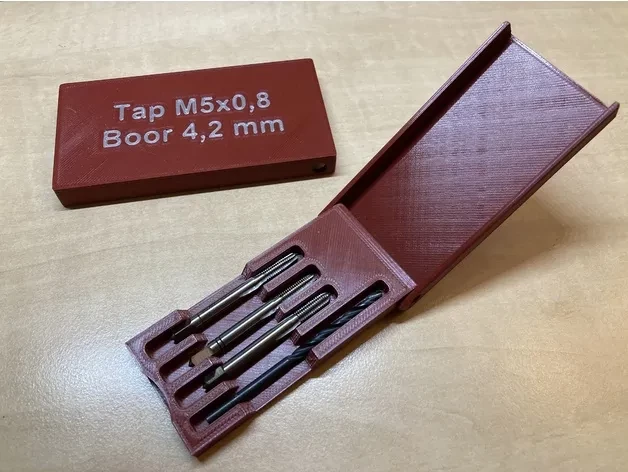

Boxes for storing thread taps, including the required drill. The Fusion360 model is included and is customizable for other tap sizes and the design can also be generated without space for the drill. Use 'change parameters' to customize the design. The STL-files are generated for threads M3; M5; M6; M8 including drill compartment. Every box-size has three STL files (for the box, the lid and the text). Use 0,15mm layer thickness. For printing the text properly on a single head printer, in your slicer software you need to align the text and the lid: Import the STL-files for the lid and the text into your slicer software The STL-files include centering marks. In Cura: select both models and choose 'center selected'. Delete the lid-model and generate the gcode for printing the text Undo the delete Delete the text-model and generate the gcode for printing the lid Print the text first, leave in place and then print the lid over the printed text Please mind: there are center marks on three corners of the model. Use these to check the proper rotation of the text and lid the center marks are much thinner than the layer thickness and don't print/are not visible after slicing the text is one layer thick (0,15mm).
