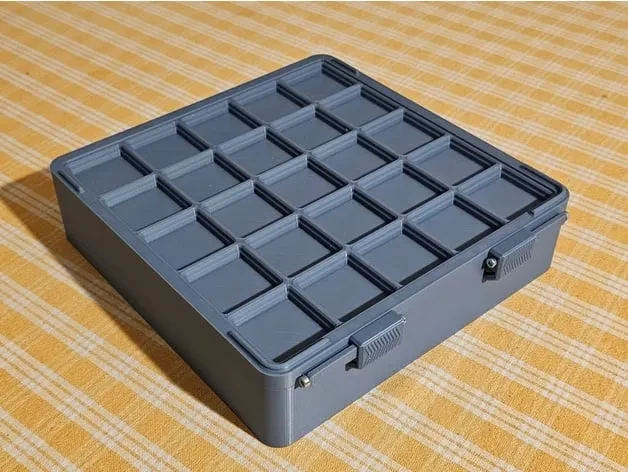

Gridfinity 5x5x6 box stackable with sliding lock by Daniel_Schenk

Simple Gridfinity 5x5 box 6u height Update: V2Base and V2Lid with more clearance around the alignment features and improved locking mechanism Hardware: 8x M3x6 set screw to fasten the hinges to the box 2x M3 Nyloc Nut for the hinges 2x M3x35 Socket Head Screw DIN912 for the hinges 2x M3x5 Socket Head Screw DIN912 to hold the sliders on the rails Printing: -"block" and the two hinge parts need to be printed twice -printing orientation see pictures Inspired by: https://www.printables.com/model/543553-gridfinity-storage-box-by-pred-now-parametric Gridfinity by Zack Freedman: https://www.youtube.com/watch?v=ra_9zU-mnl8 gridfinity
