Ender3 V2 Silent Pack, Modular PSU Cover (80x80x15mm) by macondos

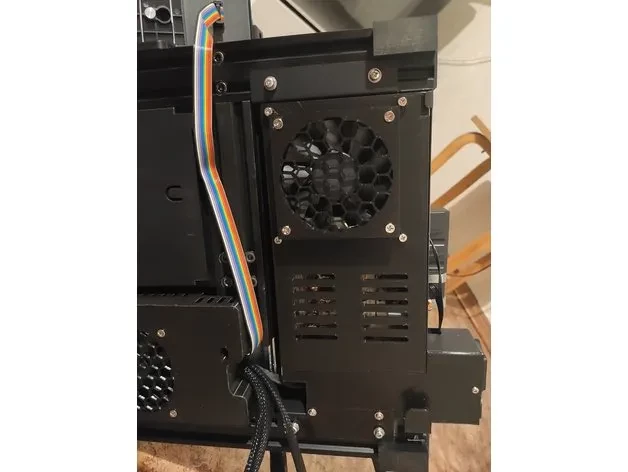

I didn't dare print a large cover diagonally for the Ender 3 V2 PSU, so I made a modular design from several individual parts. I tried to minimize the use of supports. The cover consists of 4 parts: The power supply cover itself. Fan holder. Cable cover. Accessory mount for cable cover. In fact, it is not even necessary to print parts 3 and 4. After printing 1, 2 parts and legs, you can already assemble the printer. The cable cover is needed more for safety, because behind it there are high-voltage wires. The accessory mount for cable cover (4) is also not super necessary. Without it, everything also holds normally, but I did it just in case. Please note that when using part 4, it will not be possible to use round legs, so I made spacers for standard dampers for the legs. I have attached Fusion 360 files where you can change the fan diameter and height.
