Peg Board Mount Brackets by cw051879

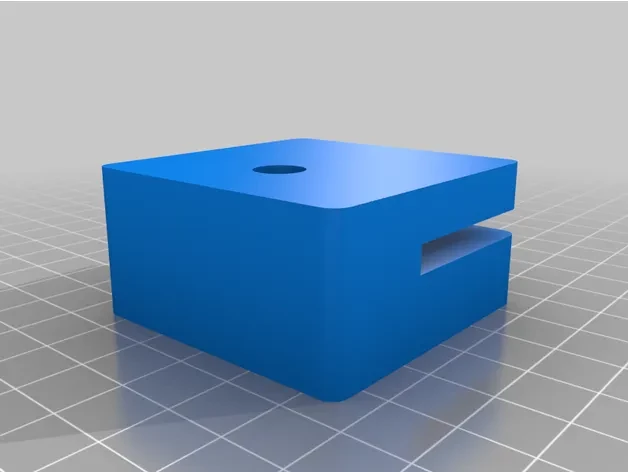

After reviewing a few different Peg Board Mounts, I decided to make a more robust mount that would have more positive contact with the peg board. I have included 3 different parts: corner, edge and rear support. The design is around Peg Board from the big box stories. 1/4 inch thick board with 1/4 holes at 1 inch spacing. The screw holes are designed for 8-32 screws that are recessed into the mount. Mounts have a 1/2 offset from the mounting surface for hook clearance. I used 30% infill. I suggest four to six layer wall thickness to provide strength for the mounting screws.
